Modular Fluidics, LLC™ Energy Systems
Patent Pending — Modular System Architecture
Multi-Frequency Fluidic Applications
Surface & Downhole Modular Canister System
Modular Fluidic Energy Platform
The Modular Fluidic Energy System™ is an integrated hydraulic platform designed to generate, route, reinforce, monitor, and control oscillatory fluid energy throughout a pressurized fluid system.
The architecture supports surface-only, downhole-only, and combined surface-and-downhole operation using interchangeable fluidic modules, modular frequency canisters, valve-logic routing, and application-specific components..
- Well Intervention
- Acid Deep Penetration
- Scale & Debris Cleanout
- Frac Plug Removal
- Fluid conditioning (stabilized hydraulic delivery)

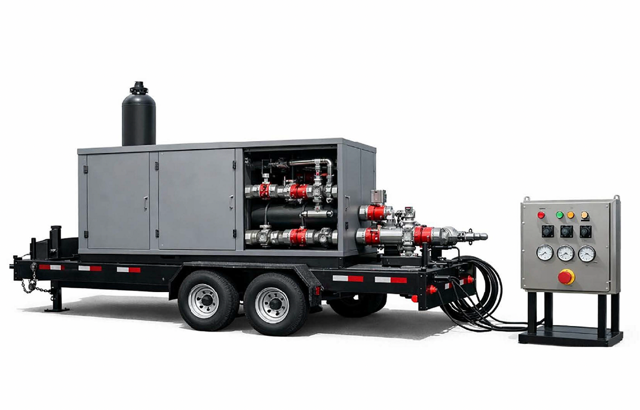

Illustrative concept of a modular surface fluidic platform. Actual field configurations may vary depending on operational requirements.
Why Fluidic Energy Systems
- No moving mechanical parts
- Controlled multi-frequency hydraulic energy delivery
- Surface and Downhole compatibility
- Improved deep fluid penetration
- Reduced mechanical wear
- Designed for real oilfield operating conditions
Typical Applications
- Well Intervention
- Frac Plug Removal
- Acid Stimulation Support
- Scale & Debris Cleanout
- Fluid Conditioning
System Advantages
- No moving mechanical components
- Modular canister architecture
- Surface and downhole system compatibility
- Configurable frequency ranges
- Designed for continuous field operations
